Samil transformer products at a glance

Product Introduction

  • 변압기

    Minimum & Standard Efficiency Cast Resin Transformer

    A Cast Resin Transformer is an indoor-type transformer in which the windings are encapsulated with epoxy resin. It is widely used in modern buildings due to its excellent fire safety, environmental friendliness, and low maintenance requirements.

    • Frequency 50Hz / 60Hz
    • Capacity Up to 7,000 kVA
    • Phase Single-phase, Three-phase
    • Rated Voltage Up to 22.9 kV
    Specifications
  • 변압기

    Solar Power Cast Resin Transformer

    A Cast Resin Transformer is an indoor-type transformer in which the windings are encapsulated with epoxy resin. It is widely used in modern buildings and renewable energy facilities due to its high safety, fire resistance, and low maintenance requirements.

    • Frequency 50Hz / 60Hz
    • Capacity Up to 7,000 kVA
    • Phase Single-phase, Three-phase
    • Rated Voltage Up to 22.9 kV
    Specifications
  • 변압기

    Seismic-Resistant Cast Resin Transformer

    A seismic-resistant cast resin transformer designed to ensure stable operation and safety under seismic conditions.
    This transformer is suitable for indoor installations and provides reliable performance in critical infrastructure.

    • Frequency 50Hz / 60Hz
    • Capacity Up to 3,000 kVA
    • Phase Single-phase, Three-phase
    • Rated Voltage Up to 22.9 kV
    Specifications
  • 변압기

    Oil-Immersed Distribution Transformer

    An oil-immersed distribution transformer designed for both indoor and outdoor applications.
    It utilizes insulating oil for cooling, ensuring reliable performance, efficient heat dissipation, and long service life.

    • Frequency 50Hz / 60Hz
    • Capacity Up to 3,000 kVA
    • Phase Single-phase, Three-phase
    • Rated Voltage Up to 22.9 kV
    Specifications
  • 변압기

    Power Transformer

    A high-capacity power transformer designed for use in substations, factories, and various industrial facilities.
    It ensures stable power transmission and reliable operation for large-scale power systems.

    • Frequency 50Hz / 60Hz
    • Capacity Up to 15,000 kVA
    • Phase Single-phase, Three-phase
    • Rated Voltage Up to 22.9 kV
    Specifications
  • 변압기

    KEPCO Pole-Mounted Transformer

    A pole-mounted transformer manufactured in accordance with KEPCO (Korea Electric Power Corporation) contract specifications and required capacities.
    It is designed to meet KEPCO standards, ensuring reliable and stable power distribution.

    Specifications
  • 변압기

    Pad-Mounted Transformer

    A pad-mounted transformer is an oil-immersed (oil-filled) single-phase or three-phase distribution transformer designed for underground distribution loads.
    It is widely used in apartments, schools, shopping centers, factories, and other commercial or industrial facilities, providing safe and reliable power distribution.

    • Frequency 50Hz / 60Hz
    • Capacity Up to 3000kVA
    • High Voltage 2.4kV to 34.5kV
    • Low Voltage 208Y/120V to 4160V
    Specifications
  • 변압기

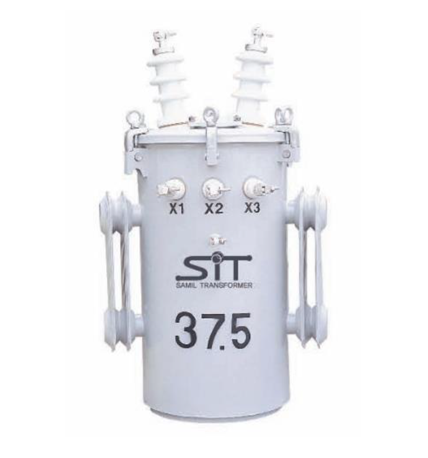

    Pole-Mounted Transformer

    Our single phase pole-mounted transformers are oil filled, 65C rise, and designed for use service conditions per IEEE C57.12.20. Ratings are available in 167kVA and smaller, with high side voltages 26,400Y/15,240. The required low-side voltage and size shall be specified at the time an order is placed.

    • Frequency 50Hz / 60Hz
    • Capacity Up to 167kVA
    • High Voltage 34.5kV and Below
    • Low Voltage 240/120V, 480/240V, 277V
    Specifications
